End sleeves
End sleeves are used when a perfect connection is required, for example, to a screw terminal block. The strands are kept together and connecting screws will not damage the strands. Long lasting contact forces are easier to achieve.

Abiko end sleeves are manufactured from tin plated, electrolytic 99.95% copper tubes. The end terminals have dimensions in accordance with DIN 46228 (with a few exceptions). The pre-insulated end sleeves are made of PP, polypropylene, and have a conical EasyEntry, inside shape.

Click here for digital catalogue (pdf-files).

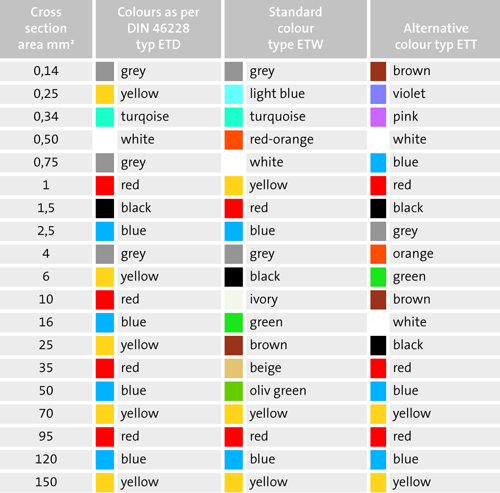

Colour codes
